Unique T Joint for Slurry Channels

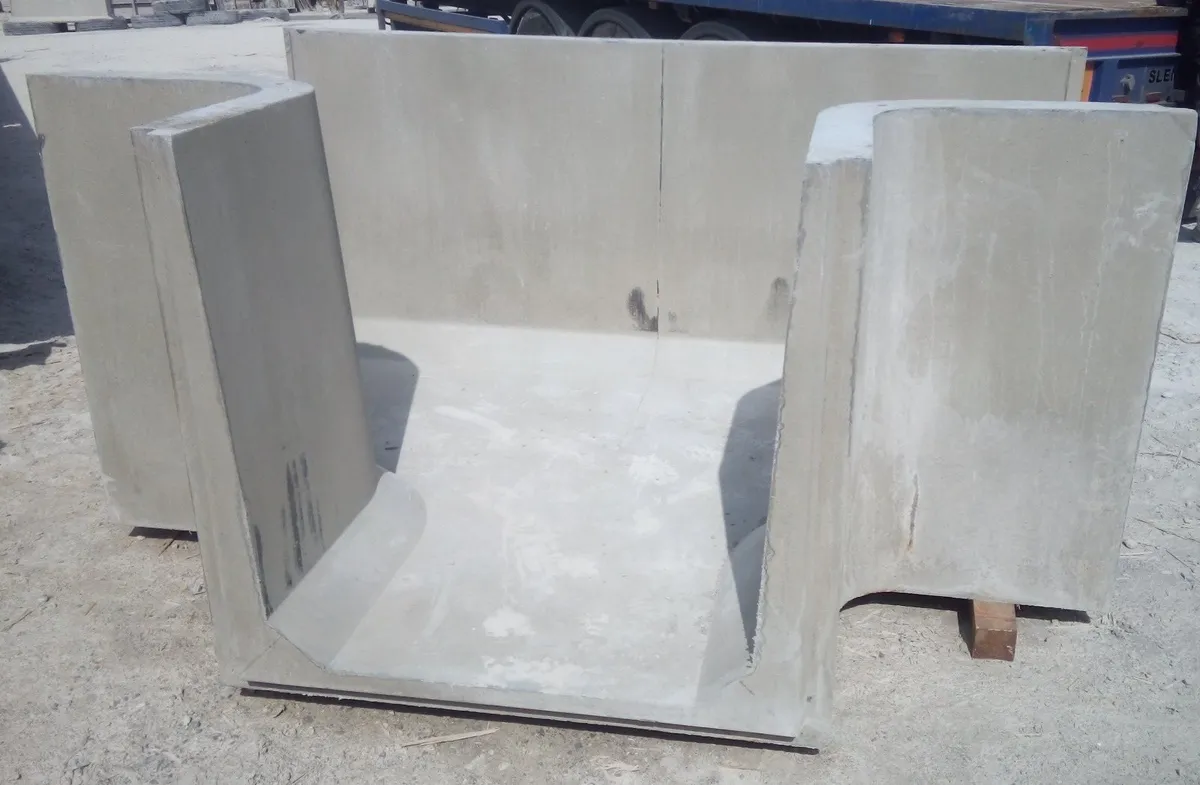

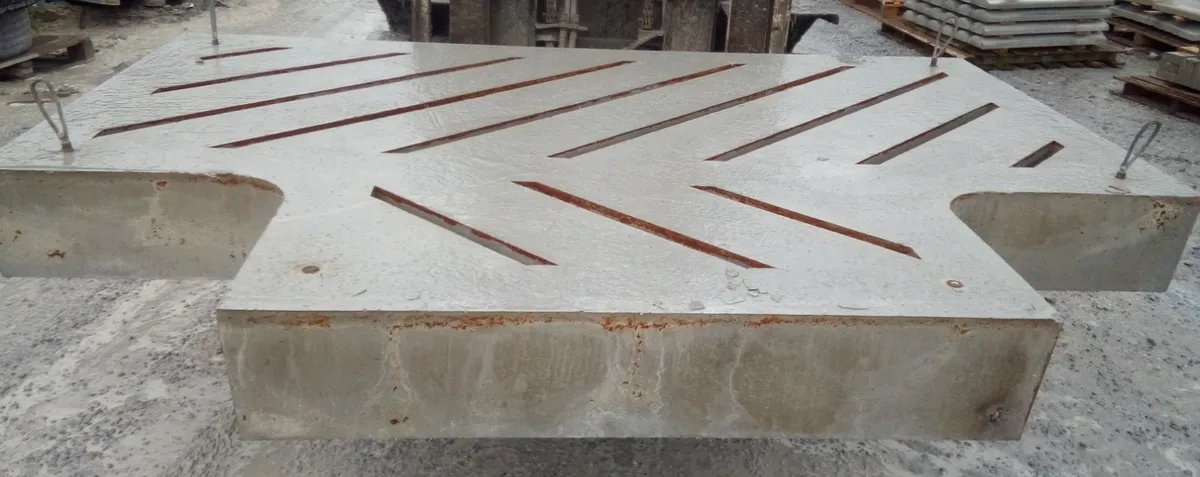

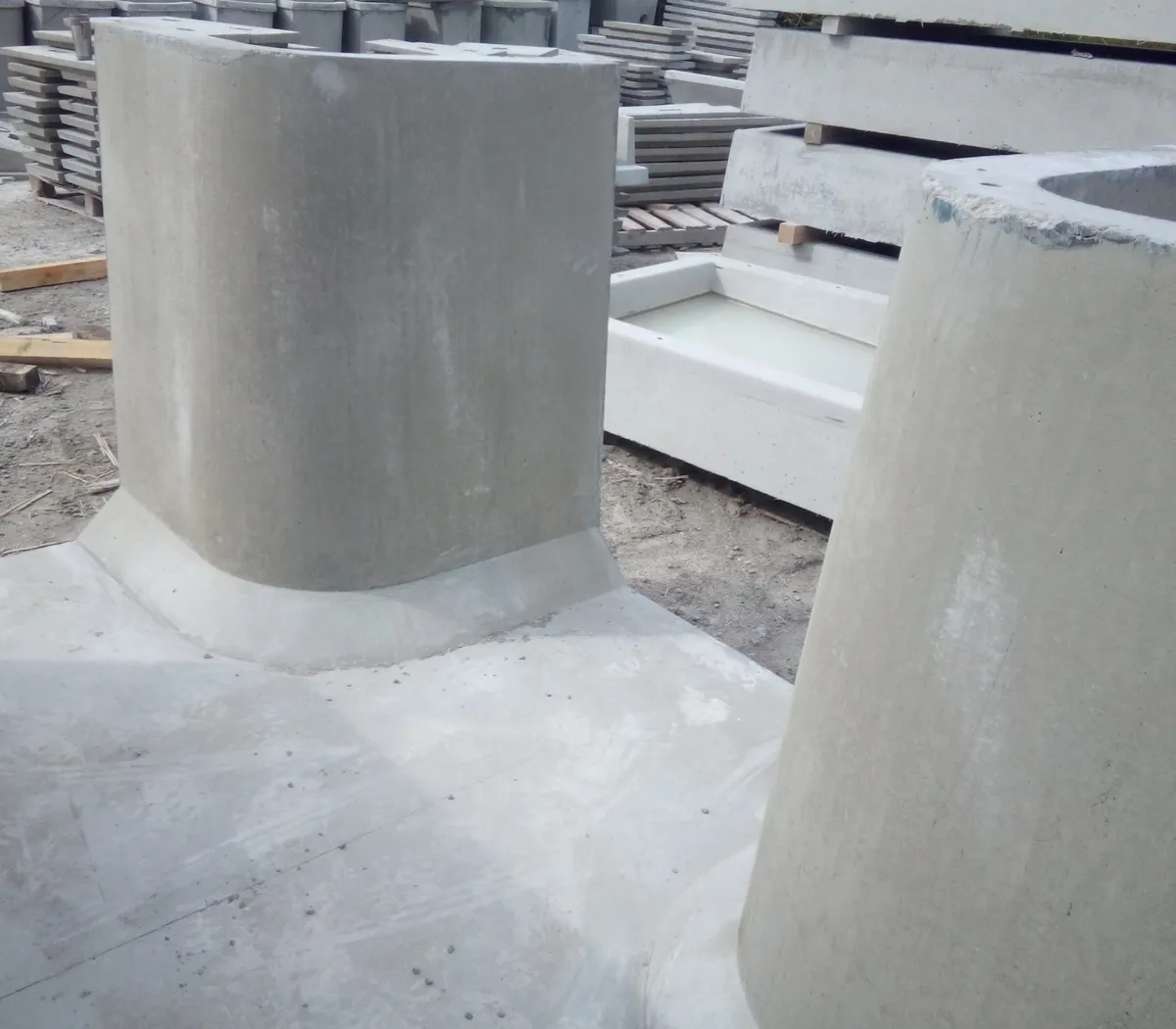

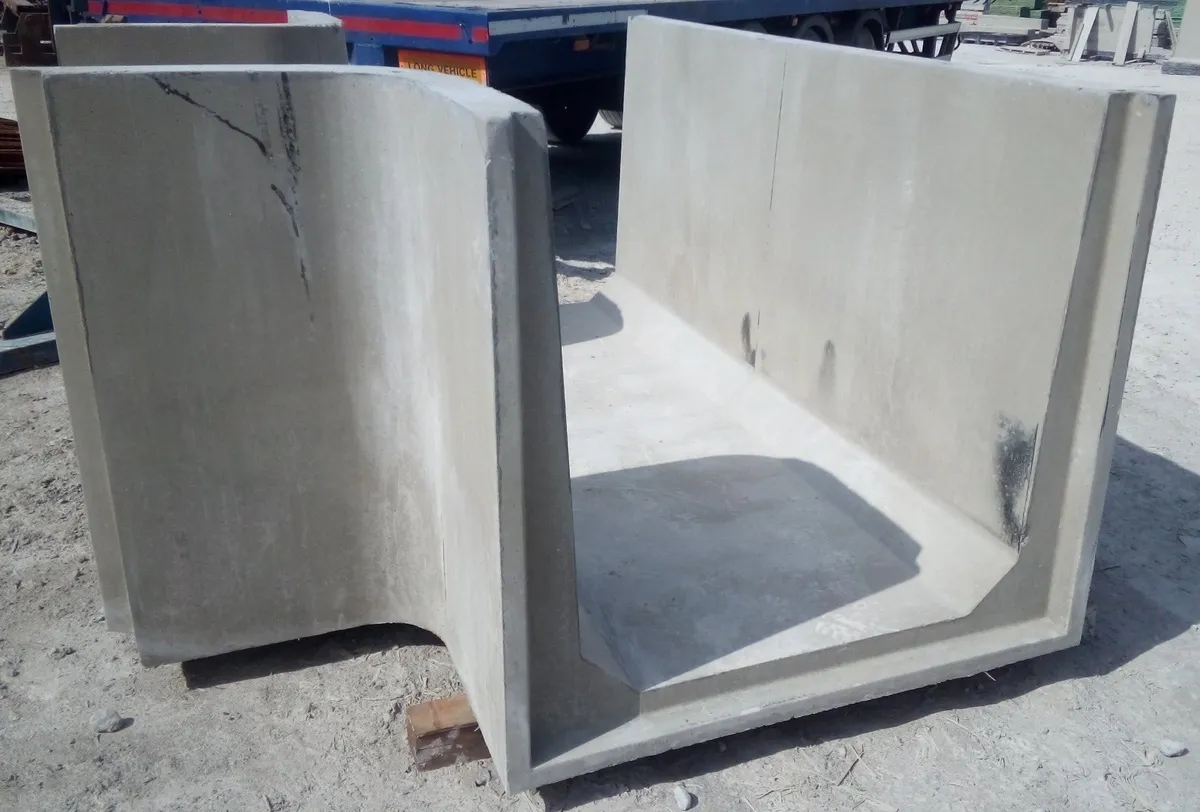

https://mcmahonsconcreteproducts.com/ To the best of our knowledge this products is unique to McMahon's Concrete Products We also do single left and right hand corners. Slotted lids are also available for our T pieces and corner pieces. We also offer a stop end for all our slurry channel types.. See attached picture. It fits into the end of channels with a bottom step for added stability. The T channel overall dimensions are 2.4 m (7ft ft 10 in ) long by 1.77 m ( 5 ft 10 In ) . The channel outlets are the same as our regular slurry channels ie 1.2 m (4 ft ) wide by 1.1 m (3ft 8 in ) high. The channel walls are 100 mm ( 4 in ) thick. You may note that the edges of the T are rounded to ensure the Slurry flows freely. Also the joints are finished so that the T junction slots neatly into the adjacent slurry channels. Again lifting sockets are built into our T junctions, corners and end pieces for ease of installation. This enables the channels and the lids to be laid quickly. Lifting Loops are provided. Slurry Channels can reduce costs for farmers by channelling effluent into one tank rather than investing in a series of tanks. As long as there is water in the channels the weight of the slurry will force it to float on top of the water along the channel. An end piece will always keep 18 inches of water within the channel system. The Slotted Lid is suitable for use with scraper systems. We find that most customers prefer slotted lids so they can clean into them with a scraper.
