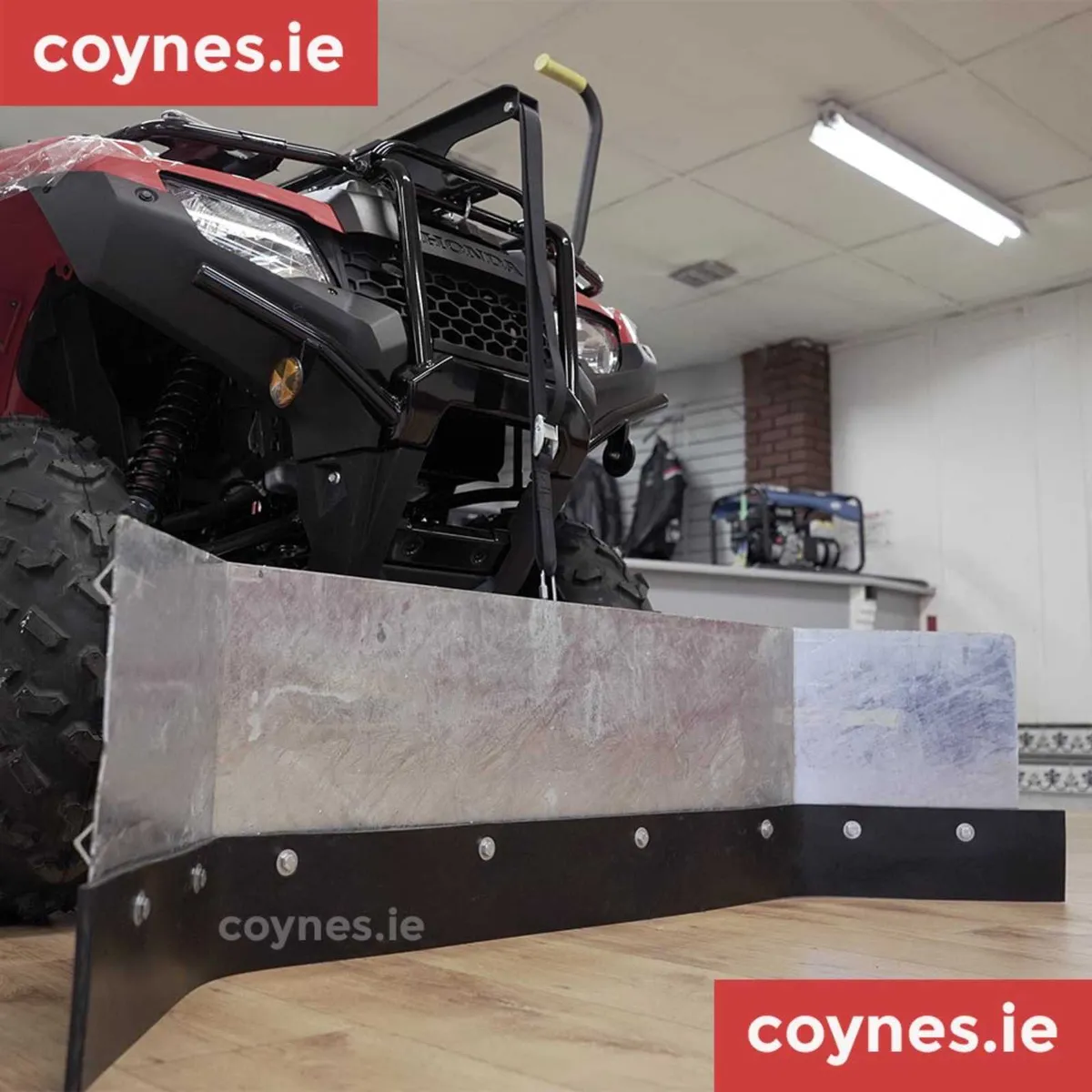

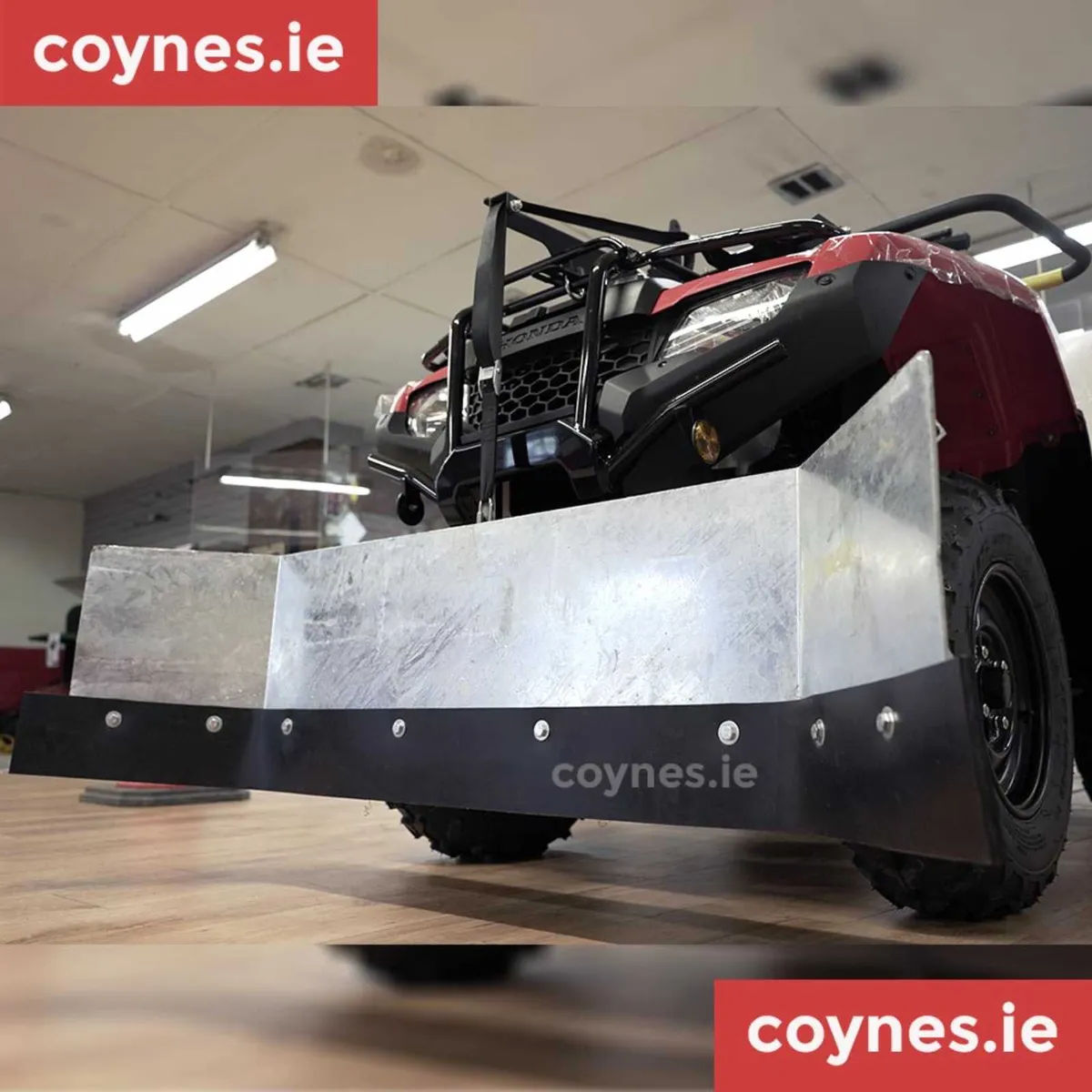

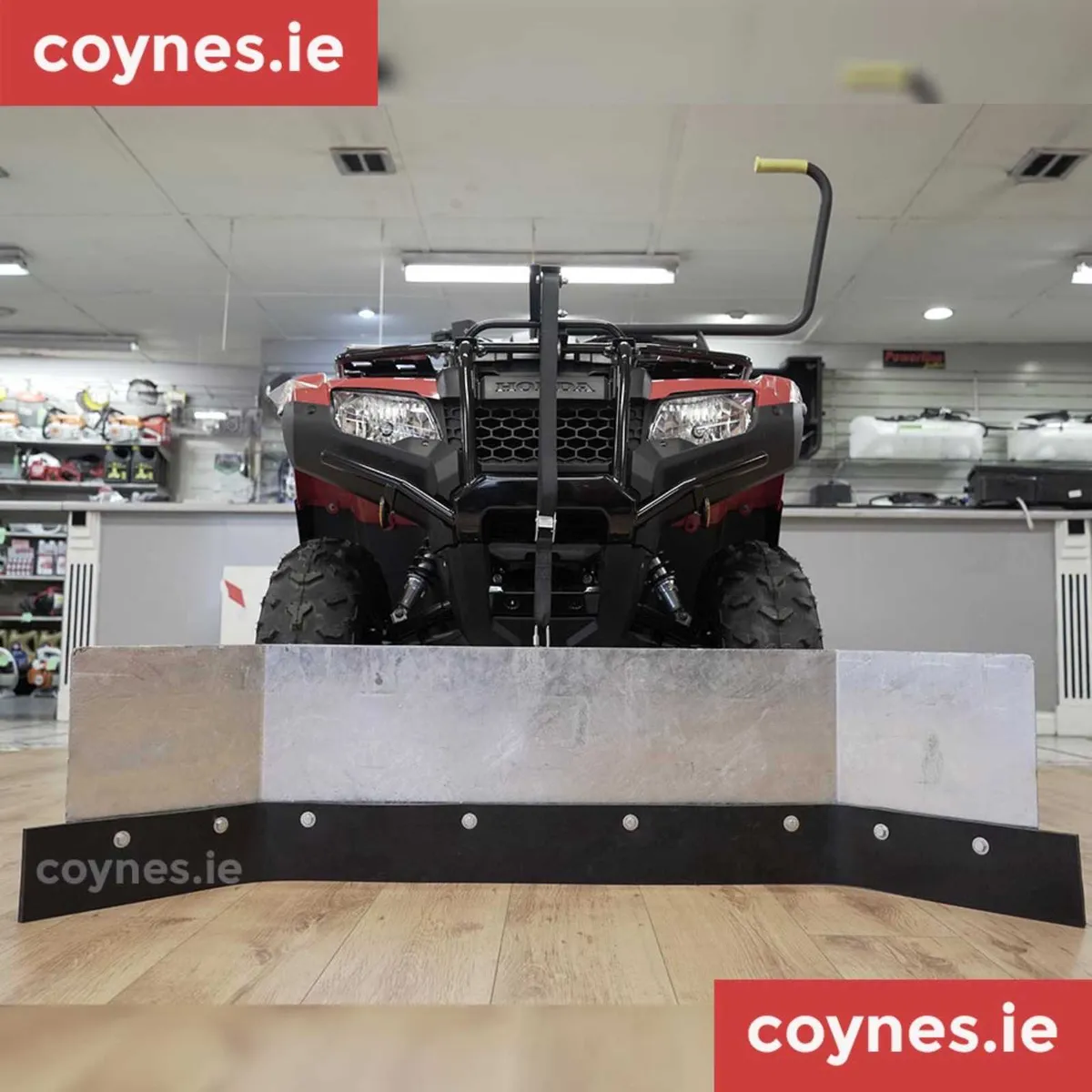

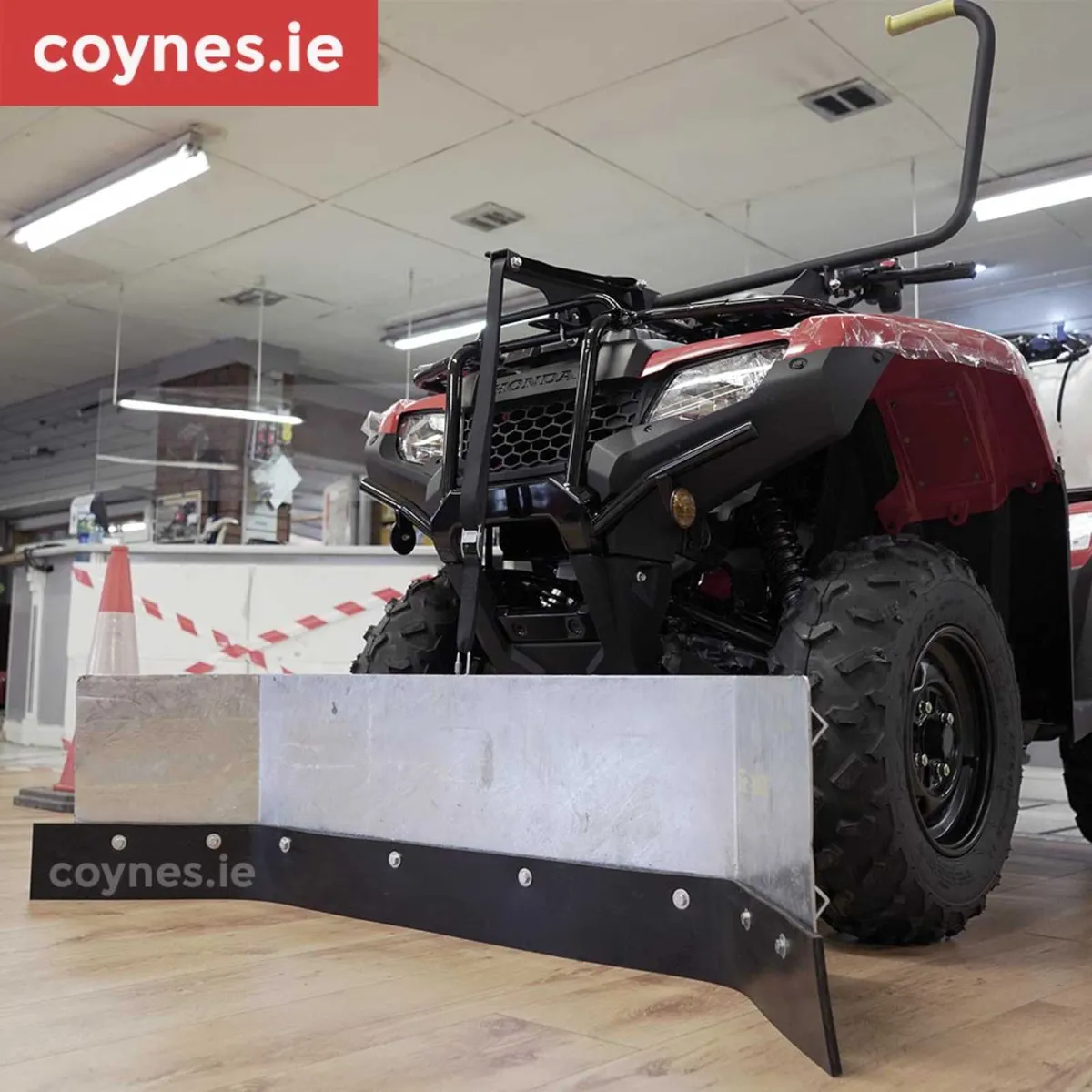

ATV QUAD YARD SCRAPER

ATV quad yard scraper * 1.2-metre width scraper blade *High tensile steel with heavy-duty rubber scrape *Manual easy lift system *Easy installation with quick release pins *Mounting plates for Honda, Yamaha, Suzuki and kawasaki quads. Find a huge range of Honda quad tyres, parts and accessories on our website coynes.ie https://coynes.ie/quad-yard-scraper-kit/ Call for full spec and prices. Nationwide delivery supplied by Fastway couriers €20 FITTING INSTRUCTIONS The scraper comes with a flat mount plate that needs to be mounted, via the U-bolts included, to the under frame of your bike. The mount fits on the frame between the rear of the front wheels. Once mounted the scraper can be fitted and unfitted easily to the mount plate with quick release pins included. The under plate works as a pivot point. The blade is attached to the top lifting mechanism with a strap that hooks onto an eye on the top of the blade, this is what lifts the blade up and down. The lifting mechanism is held onto the front rack with u-bolts also.  Once the plate is fitted you'd leave it on the bike as it will not obstruct day-to-day working of the bike, and work away fitting and unfitting the scraper as you need it with the quick release pins and top strap clip. It's a great job once it's set up and can be put on and off in a few moments. More quad accessories including sprayers, booms, boxes and Bearclaw deep-tread tyres also available. Huge selection of Honda quad parts in genuine and aftermarket opening hours Tuesday to Friday 9:30am to 6:00pm and closed from 1:00pm to 2:00pm for lunch. Saturday 9:30am to 5:00pm and closed from 1:00pm to 2:00pm for lunch. CLOSED SUNDAY AND MONDAY.
